### Ray Light Optics Simulation and Calculator

A web application to simulate reflection and refraction of light with optics.

## Tools

Ray

A single ray of light defined by two points.

Beam

A parallel beam of rays emerges from a line-segment, with density controlled by the "Ray density" slider.

Point Source

Rays emerge from a single point, with number controlled by the "Ray density" slider.

Mirror

Simulate the reflection of light on a mirror.

Mirror (Arc)

A mirror whose shape is part of a circle, which is defined by three points.

Ideal curved mirror

The idealized "curved" mirror which obeys exactly the mirror equation (1/p + 1/q = 1/f). The focal length (in pixels) can be set directly.

Glass

Simulate the the refraction and reflection of light on a surface. The intensities are calculated by assuming unpolarized.

Glass (Circle)

Glass with circle shape, defind by its center and a point on the surface.

Glass (Other shapes)

Glass with any shapes constructed from line segments and circular arcs, including prisms and "spherical" lenses.

Glass (Ideal lens)

An ideal lens which obeys exactly the thin lens equation (1/p + 1/q = 1/f). The focal length (in pixels) can be set directly.

Blocker

A line-segment light blocker which absorbes the incident rays.

Ruler

A ruler from a point for zero and another point. The scale is in pixels.

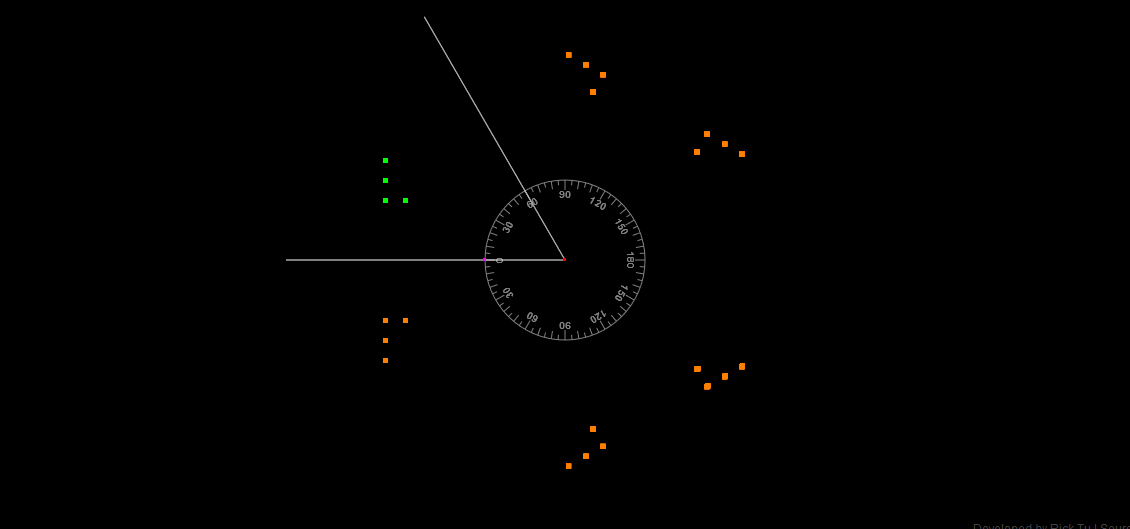

Protractor

A protractor defined from center and another point for the zero direction. The scale is in degrees.

## Views

Rays

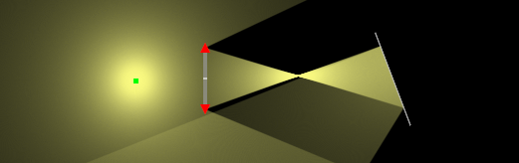

Show the rays. When the "Ray density" is high, they appears to be continuous.

Extended Rays

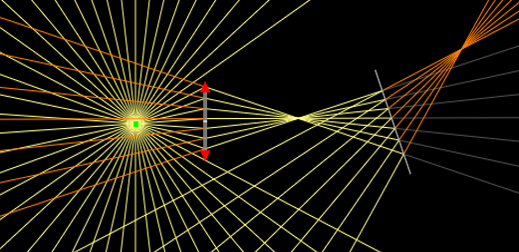

Show both the rays and its extension. Orange indicates backward extensions, and gray indicates forward ones.

All Images

Show the position of all images. Yellow points indicate real images, orange indicate virtual images, and gray (none in this picture) indicate virtual objects. Note that some images cannot be detected if "Ray density" is not high enough.

Seen by observer

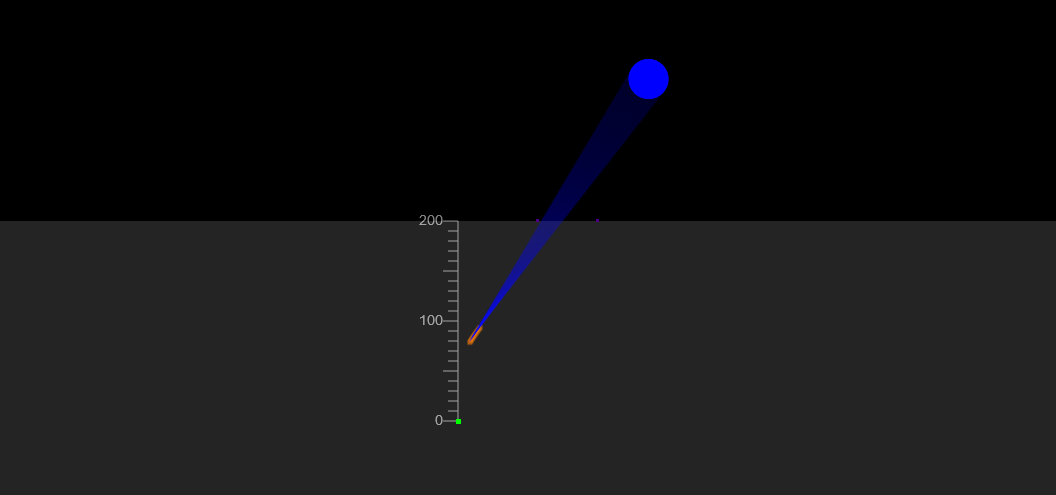

Simulate the rays and images seen from some position. The blue circle is the observer. Any rays crossing it are considered to be "observed". The observer do not know where the rays actually begin, but may think they begin at some point(s) if they intersect there. The rays are shown in blue, and the point(s) in orange.
