GD&T Two Mating Diameters Tolerance Analysis Calculator at MMC

Calculators
Tolerances, Engineering Design & Limits & Fits

Geometric Dimensioning & Tolerancing GD&T Training

(This calculator requires a java - enabled browser)

Two Mating Features GD&T True Posistion Calculator This calculator calculates position tolerances utilizing principles and concepts withinASME Y14.5-2009 and ASME Y14.5M - 1994, Geometric Dimensioning and Tolerancing (GD&T).

For the equations behind this calculator, see:
"Geometric Boundaries"
Interpretation and Application of
Geometric Dimensioning and Tolerancing

Notes:

  1. Units may be given as inches, mm, meters or whatever.
  2. Units DO NEED to be consistant (e.g. all inches or all mm).

GD&T Two Mating Features True Position Calculator

Hole Diameter @ MMC
H2

Hole Position Tolerance
Tol_h

Shaft Diameter
D2

Shaft Tolerance
Tol_d

Hole Diameter Datum) @ MMC
H1

Shaft Diameter
(Datum) @ MMC
D1
Clearance
C

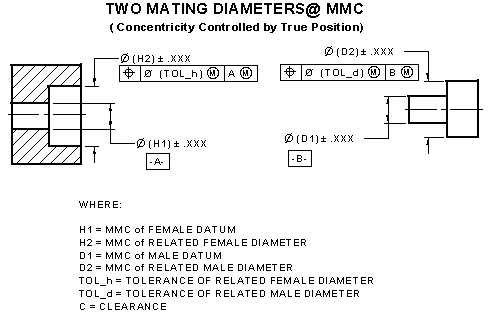

Two Mating Diameters True Position
